NEW QUESTION # 53
What is the port configuration of an MX5108n switch?

A. 8 x internal 25GbE ports
2 x 40GbE QSFP+ ports
1 x 100GbE QSFP28 port
4 x 10GbE RJ45 Base-T ports
B. 16 x internal 25GbE ports
4 x 40GbE QSFP+ ports
2 x 100GbE QSFP28 ports
1 x 10GbE RJ45 Base-T port
C. 8 x internal 25GbE ports
1 x 40GbE QSFP+ port
2 x 100GbE QSFP28 ports
4 x 10GbE RJ45 Base-T ports
D. 16 x internal 25GbE ports
1 x 40GbE QSFP+ port
2 x 100GbE QSFP28 ports
4 x 10GbE RJ45 Base-T ports

Answer: C

NEW QUESTION # 54
Which protocol(s) does Redfish use?

A. OData only
B. JSON and OData only
C. JSON only
D. JSON, OData, and SNMP

Answer: B

NEW QUESTION # 55
A server administrator wants to configure chassis power, thermal, and fans metric reports on a PowerEdge MX7000 chassis.
Which type of license is required?

A. OME Essentials
B. OME-M Advanced
C. OME-M Base
D. OME Enterprise

Answer: B

NEW QUESTION # 56
What does OBPAR allow on a PowerEdge MX750c?

A. Run a compute sled with maximum performance.
B. Boot a compute sled with reduced frequency.
C. Run a compute sled with memory overclocking.
D. Boot a compute sled with only one CPU.

Answer: B

NEW QUESTION # 57

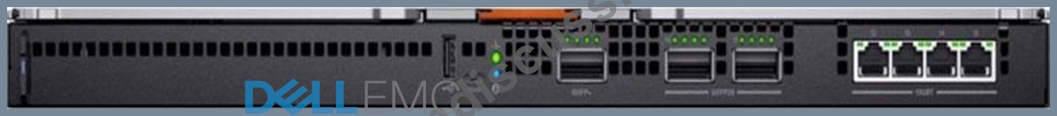

Refer to the exhibit.

How many internal server-facing ports are available on this I/O module for the MX7000 chassis?

A. 0
B. 1
C. 2
D. 3

Answer: B

NEW QUESTION # 58
How can a hard reset be performed on iDRAC?

A. Using the RACADM command --SystemReset -t 0 -f
B. On the server, press and hold the ID LED button for 15 seconds
C. On the iDRAC web interface, select the Reset option
D. Using the OME-M Interface and selecting Virtual Reseat

Answer: B

NEW QUESTION # 59
Which SmartFabric Services Engine component is responsible for managing requested changes for the specific switching node?

A. External Fabric Manager
B. Fabric Agent
C. SFS Controller

Answer: B

NEW QUESTION # 60
Why is the backup lead configuration important in an MCM Group?

A. The backup lead chassis facilitates management of systems when the existing lead chassis fails.
B. This configuration allows configuration changes from the backup chassis.
C. The configuration allows sharing of the lead chassis IOMs and Management Module databases.
D. The backup chassis is promoted automatically if the lead chassis fails.

Answer: A

NEW QUESTION # 61
What are two requirements to achieve 100 GbE network speeds for a compute sled?
(Select 2)

A. Dual-port NIC
B. Z9432F-ON
C. MX9116n
D. Quad-port NIC
E. MX7116n

Answer: C,D

NEW QUESTION # 62
A system administrator is designing a solution for a customer who will be purchasing a large number of PowerEdge MX7000 chassis. For ease of management, they would like to have the least number of chassis management groups as possible.
What is the maximum number of MX7000 chassis that are supported in a multi-chassis management group?

A. 0
B. 1
C. 2
D. 3

Answer: B

NEW QUESTION # 63
When multiple MX9002m modules are daisy-chained to Top-of-Rack switches, which uplink port can be used for stacking?

A. Either uplink port can be utilized
B. Only the Gb2 port on the secondary (right) MX9002
C. Only the Gb2 port on the primary (left) MX9002
D. Gb1 uplink ports can only stack with other Gb2 ports

Answer: A

NEW QUESTION # 64

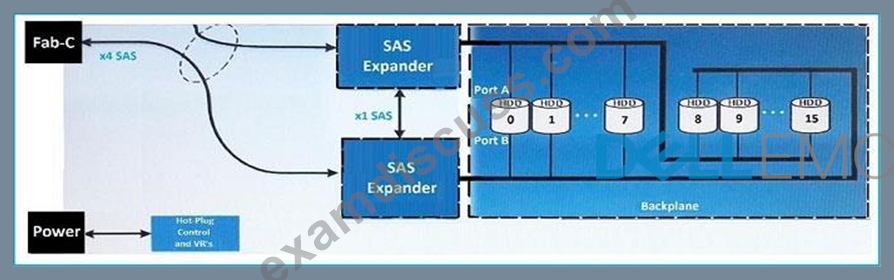

Refer to the exhibit.

What is shown?

A. MX5108n
B. MXG610s
C. MX5016s
D. MX5000s

Answer: C

NEW QUESTION # 65
Which section of the PowerEdge MX7000 chassis provides a structure for mounting PSUs and sleds?

A. Management Module slot
B. Main Distribution Board
C. Main Chassis
D. Rear Tub

Answer: C

NEW QUESTION # 66
An administrator is asked to install and power on a new MX740c sled in a PowerEdge MX7000 chassis. The administrator inserts the sled and presses the power button. The power button LED is pulsating green. After a short time, the power button turns to solid green and the server turns on.
What operation was in progress when the power button was pulsating green?

A. Management Module was updating its component inventory
B. IOM was booting
C. iDRAC was booting
D. Lifecycle Controller was taking firmware inventory

Answer: C

NEW QUESTION # 67
How are double-width compute sleds on the MX7000 numbered from the front?

A. From 1 to 8, top to bottom
B. As 1, 3, 5, and 7 left to right
C. From 1 to 8, left to right
D. As 1, 3, 5, and 7, top to bottom

Answer: B

NEW QUESTION # 68
A technician has replaced an MX chassis tub. They complete the tub installation and power on the chassis. They notice that the KVM is no longer functional.
What should the technician do after confirming the KVM feature is still enabled in OME-M?

A. Ensure all cables connecting the tub to the left ear control panel are connected properly
B. Ensure all installed Management Modules are connected to the network
C. Ensure all power supplies are connected and powered-on
D. Ensure all cables connecting the tub to the right ear control panel are connected properly

Answer: A

NEW QUESTION # 69
A network administrator must implement a 100 GbE network in their MX7000 chassis group.
Which two components satisfy this requirement?
(Select 2)
